Sidewalls are manufactured in a wide range of heights, from 40 mm up to 600 mm.
All sidewalls can be produced with a fabric reinforcement insert, particularly recommended for heights over 140 mm and necessary for heights of 160 mm and above.
The design of our sidewalls offers great vertical resistance, which adds greater stability to the belt and maintains a high degree of flexibility while allowing it to adapt to lower diameter pulleys.
It is important to observe the minimum diameters required in order to achieve the longest service life possible.
We generally recommend the following:
D1 = 4 x sidewall height.
D2 = 2,5 x sidewall height.
Depending on the quality of the rubber, it’s necessary that you get a separate calculation for each specific project.

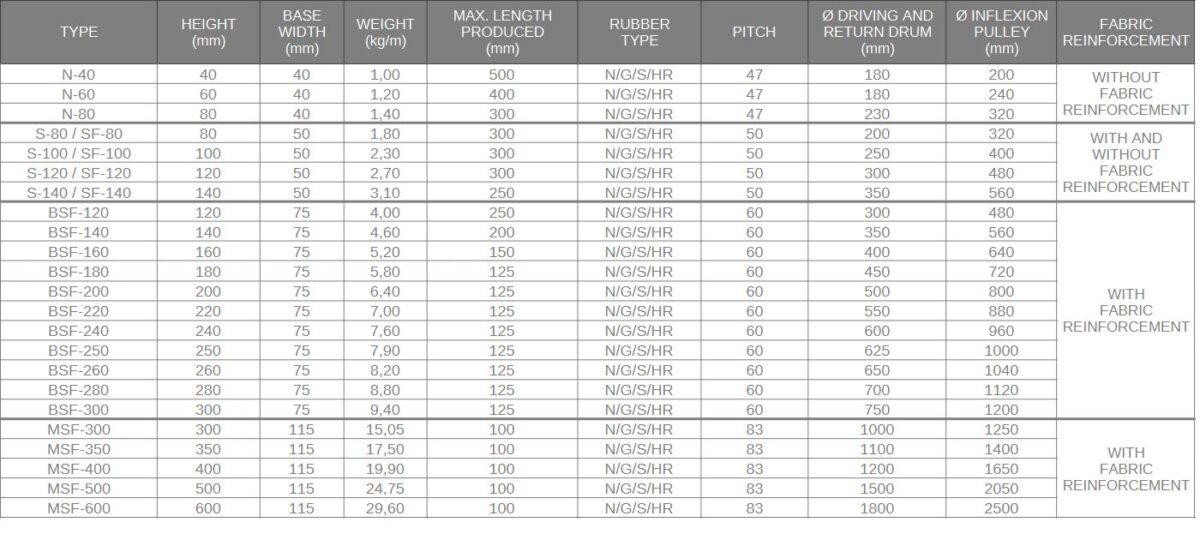

*The references with F letter= production with fabric reinforce.
*The indicated diameters are calculated for type N quality, they are merely for reference and it is necessary that you get a separate calculation for each specific project.
*The value of the drum diameter selected will be the most restrictive value according to several criteria: minimum diameter due to the sidewalls, minimum diameter due to the cleat, minimum diameter due to the belt and minimum diameter due to the tensions subjected.
For any questions, please contact Siban.
N: Normal Quality.
G: Oil Resistant Quality.
S: Flame Retardant Quality.
RC: Heat Resistant Quality up to 150ºC
